Horizontal Zero-Fleet Stage Winch

How does a horizontal winch differ from vertical winch installation?

Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. manufactures both horizontal and vertical zero-fleet stage winches to accommodate different venue configurations. The primary differences lie in mounting orientation, space requirements, and application suitability.

Installation Orientation

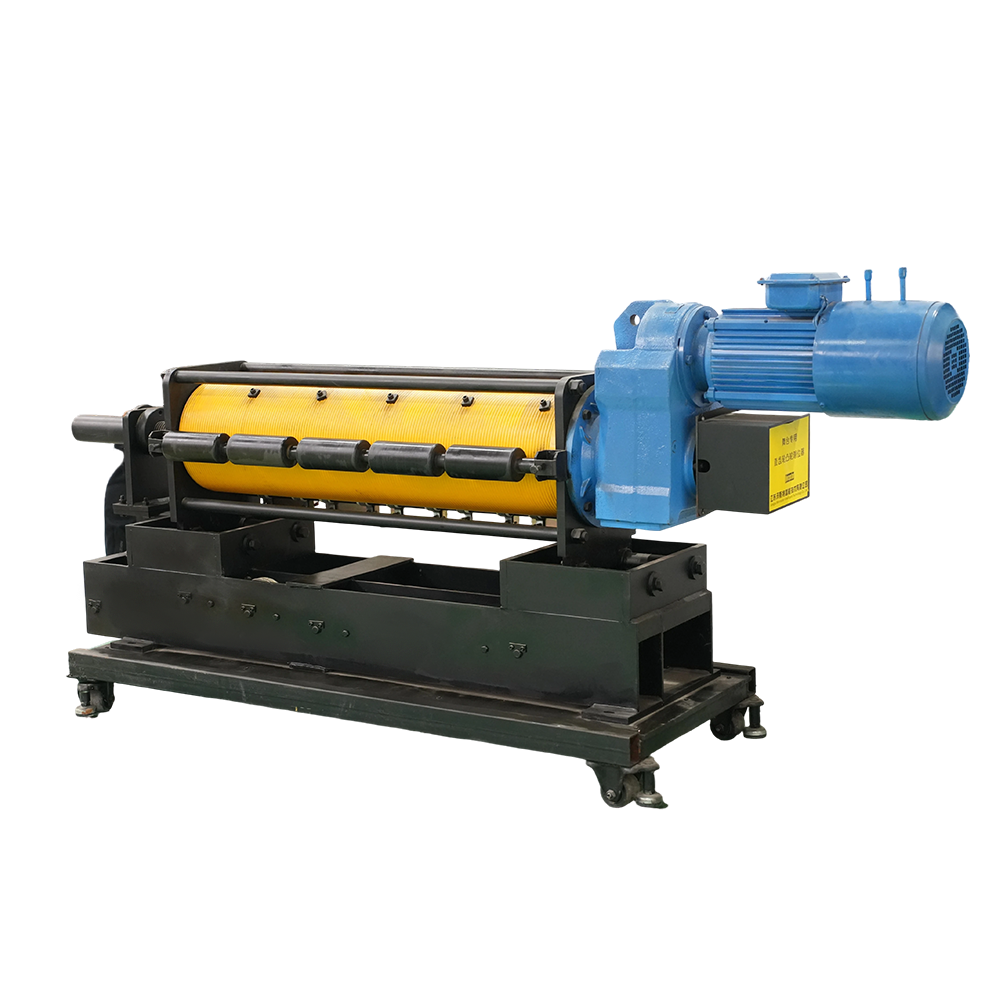

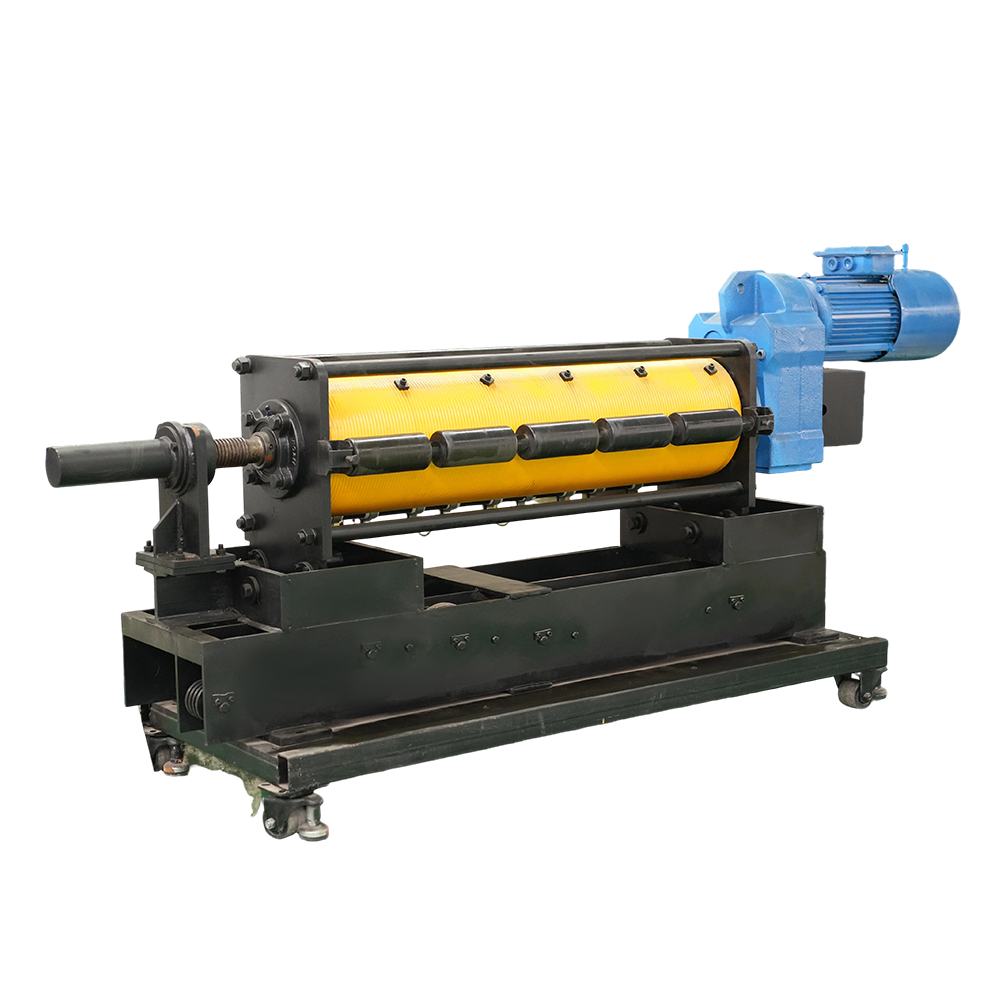

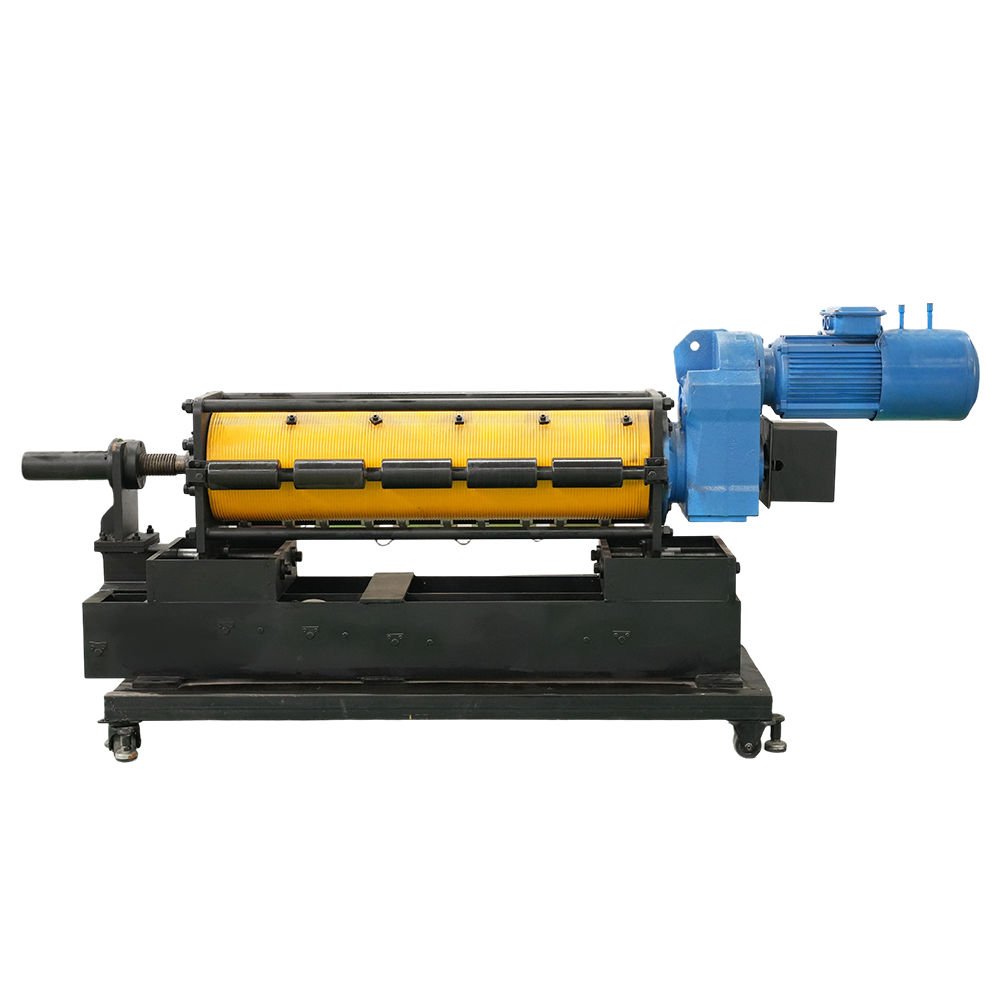

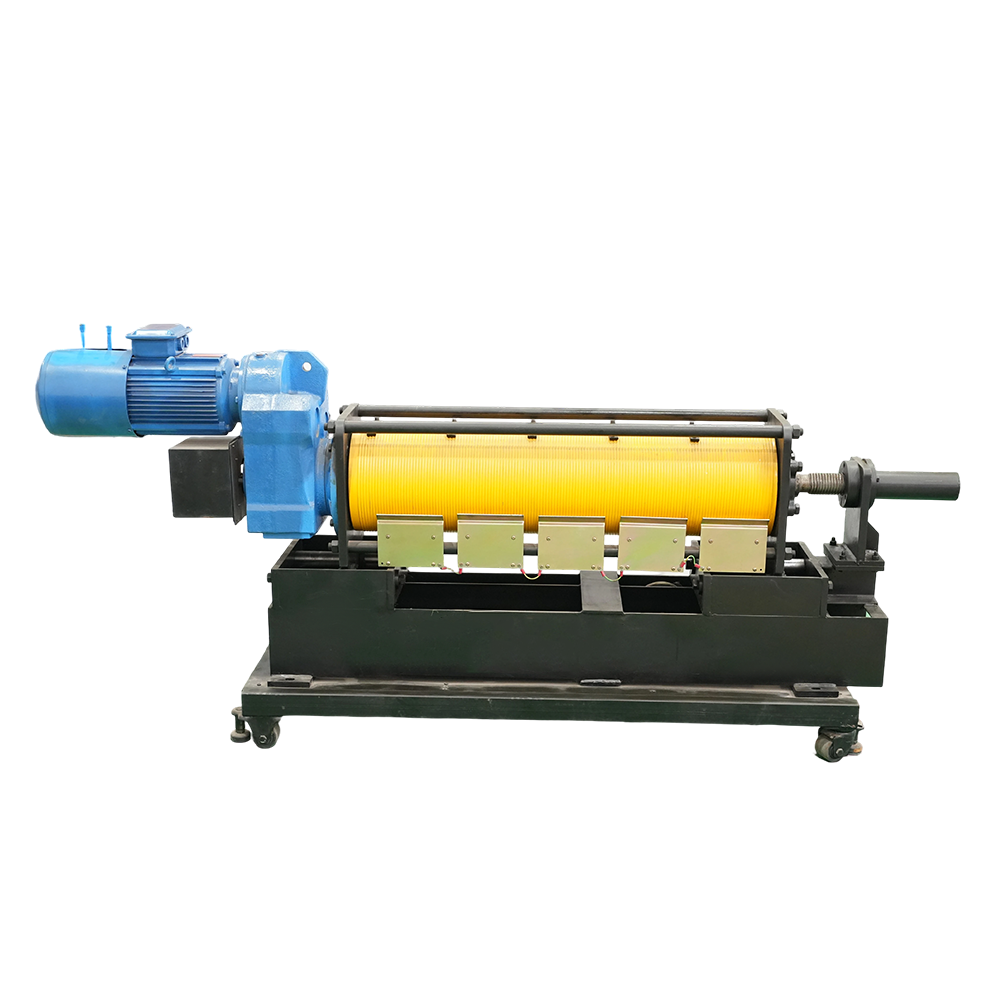

• Horizontal winch – mounted with the drum axis parallel to the floor or stage deck. The motor and gearbox are positioned horizontally, making the winch low-profile and suitable for under-stage or side-stage installations.
• Vertical winch – mounted with the drum axis perpendicular to the floor. The motor and gearbox are stacked vertically, making it taller but with a smaller floor footprint, ideal for overhead rigging or fly tower installations.

Space Requirements

• Horizontal installation – requires more floor space (length and width) but has a lower height profile, making it suitable for spaces with limited ceiling clearance such as under-stage basements or side-stage wings.
• Vertical installation – requires less floor space but demands greater vertical clearance, making it ideal for fly towers, overhead grids, and truss-mounted applications where ceiling height is available.

Cable Routing

• Horizontal winch – cable pays out parallel to the floor, allowing for straight-line routing to sheaves, traveler tracks, or deck-level pulleys. Ideal for horizontal movement applications such as traveler track propulsion and dead-haul pulling.
• Vertical winch – cable pays out vertically upward or downward, allowing direct lifting of loads with minimal redirection. Suitable for point hoists, line sets, and overhead rigging.

Performance Parameters Comparison

• Horizontal Zero-Fleet Winch
• Max line speed: 7.5 ft/s
• Max line pull: 473 lbs – 1247 lbs
• Compact tubular enclosure for side-by-side mounting
• Low-profile design for under-stage installation

• Vertical Zero-Fleet Winch (L-type)
• Max line speed: 6.75 – 7.5 ft/s
• Max line pull: 209 – 1247 lbs
• Tall slim enclosure for fly tower installation
• Optimized for overhead lifting applications

Application Suitability

• Horizontal winch – best for traveler track propulsion, dead-haul pulling, deck track driving, and applications requiring horizontal movement of scenery or soft goods.
• Vertical winch – best for point hoists, line sets, flying performers, lifting video walls, and overhead rigging where vertical lift is required.

FAQ

1. Which installation type is better for my venue?

The choice depends on your venue configuration. If you have limited ceiling height but ample floor space, the horizontal winch from Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. is ideal. If you have fly tower height available but limited floor space, the vertical L-type winch is more suitable. Our engineering team can help assess your space and recommend the optimal solution.

For detailed specifications, visit our product page: Horizontal Zero-Fleet Stage Winch.

2. What safety features are included in horizontal zero-fleet winches?

Safety is a core priority for Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. Both horizontal and vertical winches incorporate multiple safety mechanisms:

• Auxiliary safety brake – independently mounted on the drum shaft, engages if the primary brake fails.

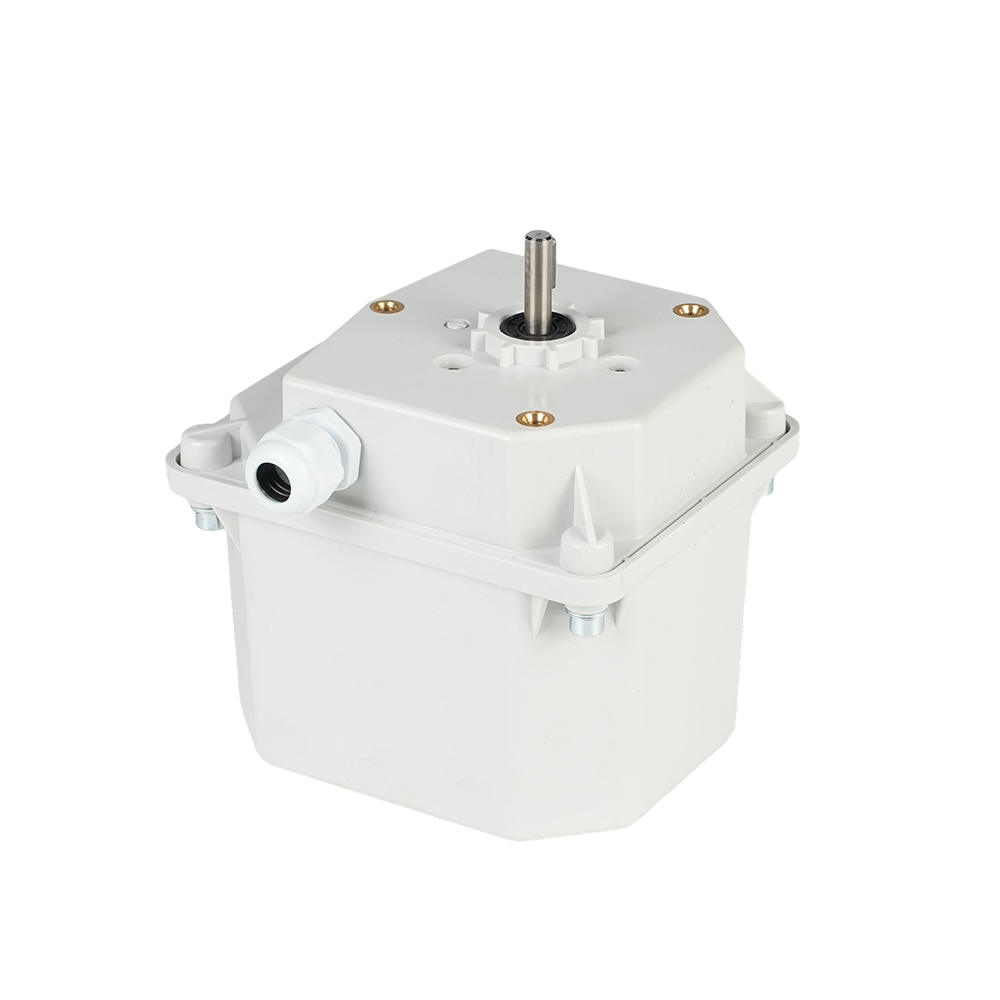

• Limit switches – upper and lower travel limits with adjustable positions.
• Emergency stop – immediate shutdown from multiple control points.
• Encoder feedback – real-time position and speed monitoring.
• Optional overload detection – tension monitoring for enhanced protection.

3. Can horizontal winches be used for vertical lifting applications?

While horizontal winches are primarily designed for horizontal movement applications such as traveler tracks and dead-haul pulling, they can be adapted for vertical lifting with appropriate redirection sheaves. However, for pure vertical lifting applications, Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. recommends using vertical L-type zero-fleet winches, which are specifically optimized for overhead rigging and point hoist applications. Our integrated solutions cover design, production, installation, commissioning, operation, and maintenance across theaters, cultural centers, stadiums, conference centers, and multi-functional performance spaces worldwide.
