Vertical Zero-Fleet Stage Winch

What are the maintenance requirements for the guide track in a vertical zero-fleet system?

In modern performance venues, stage lifting and movement systems require high reliability, precise positioning, and long service life. The guide track is one of the most important supporting components in a vertical zero-fleet system because it directly affects the stability, alignment accuracy, and operational safety of the moving mechanism. Proper maintenance of the guide track helps reduce wear, prevent abnormal movement, and ensure continuous performance operation.

A vertical zero-fleet system is designed for applications where overhead installation space is limited but high-speed stage movement is still required. The vertical zero-fleet stage winch integrates compact mechanical design, efficient transmission structures, and intelligent safety monitoring technologies. Maintenance of the guide track must be considered together with the winch structure, rope alignment assembly, pulley system, and control components to achieve reliable operation.

Vertical Auto-spooling Stage Winch Guide Track Maintenance Requirements

The vertical auto-spooling stage winch is a space-saving stage lifting solution that uses a vertical sheave-up installation method. Compared with traditional horizontal systems, this configuration reduces installation footprint while maintaining strong lifting capability. The guide track in this system provides directional support for moving components and ensures that the stage mechanism travels smoothly during repeated operation.

The main maintenance focus of this category includes cleaning, lubrication, alignment inspection, and wear monitoring. Dust, debris, and accumulated particles may affect the contact surface between the guide components and moving parts. Regular cleaning prevents friction increase and reduces the possibility of irregular movement. Lubrication should be performed according to the equipment operating environment and manufacturer recommendations to maintain smooth mechanical operation.

The vertical zero-fleet stage winch adopts a coaxial screw and roller drum structure, allowing higher movement efficiency compared with conventional vertical arrangements. During maintenance, technicians should inspect the connection between the guide track and the roller drum assembly to confirm that there is no deformation, looseness, or abnormal vibration. The integrated Proload Inspection Technology with OCY-MULTI Sensors also supports operational protection by detecting overload or assembly abnormalities.

• Check guide track surface condition regularly to identify scratches, deformation, or excessive wear.
• Maintain clean contact areas between guide components and moving mechanisms.
• Inspect fastening components to prevent structural movement caused by vibration.
• Verify sensor feedback and braking functions during scheduled maintenance.

For professional stage equipment manufacturers, guide track maintenance is not an independent process but part of a complete system management approach. Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. provides integrated solutions covering design, production, installation, commissioning, operation, and maintenance. The company focuses on stage machinery, performance equipment, and intelligent control systems, helping performance venues maintain safe and stable operation.

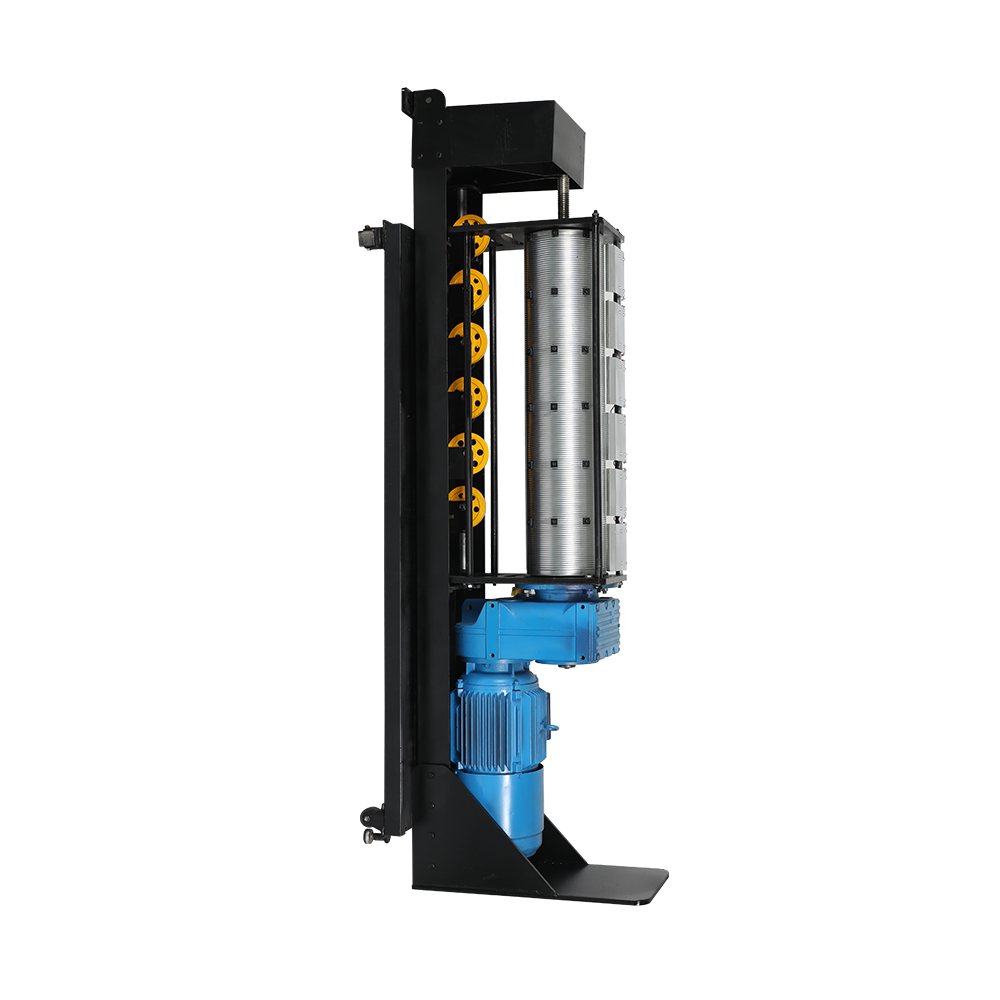

Vertical Mount Stage Winch Structural Maintenance and Performance Protection

The vertical mount stage winch represents another important product category in compact stage lifting applications. It is mainly positioned for theaters, cultural centers, conference venues, and multifunctional performance spaces where installation flexibility is required. The vertical mounting structure allows equipment designers to optimize space utilization while maintaining accurate stage movement control.

Maintenance of the guide track for vertical mounting systems requires attention to mechanical alignment. Since the winch operates in a vertical direction, uneven loading or improper adjustment may gradually influence the movement path. Engineers should inspect the guide track position, supporting brackets, and connection points during regular service periods.

The mechanical components of this type of equipment usually include electric motors, reducers, roller drums, limit switches, rope aligning assemblies, and pulleys. Each component works together with the guide track to provide stable stage travel. The dual braking design and independent emergency stopping capability improve safety performance, while dual encoder control technology supports precise travel positioning.

Compared with other stage lifting solutions, vertical mounting equipment provides better space utilization and easier integration in limited installation environments. However, its compact structure requires more accurate maintenance management. Regular inspections can prevent minor guide track issues from developing into larger mechanical failures.

1. Inspect the guide track and supporting structure before scheduled performances.
2. Clean and lubricate moving surfaces according to operation frequency and environment.
3. Test limit switches, braking systems, and sensor feedback functions.
4. Record maintenance results and optimize future inspection plans.

Intelligent Control Integrated Stage Winch Systems and Long-Term Maintenance Strategy

Intelligent control integrated stage winch systems combine mechanical structures with digital monitoring functions. These systems are designed to improve operational safety through real-time status detection, precise movement control, and automated protection mechanisms. The guide track remains a critical mechanical foundation because even advanced control systems depend on stable physical movement.

In this product category, maintenance focuses not only on physical components but also on the interaction between mechanical and electronic systems. Sensor calibration, encoder inspection, and control signal verification should be included in routine maintenance procedures. When the guide track operates smoothly, the control system can achieve more accurate positioning and safer stage movement.

Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. has developed a complete production and quality management system for stage machinery solutions. The company operates a modern production facility covering approximately 20,000 square meters, including production workshops and R&D office areas. With more than 30 advanced CNC processing devices and a complete manufacturing process from raw material processing to machine assembly, the company supports customized stage equipment production.

The company applies strict quality control throughout manufacturing, including key component testing, process inspection, and complete machine commissioning before delivery. This approach ensures that equipment such as the vertical zero-fleet stage winch can maintain stable performance throughout long-term operation.

A professional maintenance strategy for intelligent stage systems should include:

• Mechanical inspection of guide tracks, pulleys, drums, and fastening structures.
• Electrical inspection of motors, limit switches, and intelligent monitoring devices.
• Operational testing under different stage movement conditions.
• Maintenance documentation for future performance optimization.

Frequently Asked Questions

Q1: What is the main function of the guide track in a vertical zero-fleet system?

The guide track provides directional support for the moving mechanism and helps maintain stable, accurate stage movement. Proper maintenance prevents excessive friction, vibration, and positioning errors during operation.

Q2: How often should a vertical zero-fleet stage winch guide track be inspected?

Inspection frequency depends on operating conditions, performance schedules, and environmental factors. Regular checks before important events and periodic professional maintenance are recommended to ensure safe operation.

Q3: What advantages does a vertical mount stage winch provide for performance venues?

A vertical mount stage winch provides compact installation, efficient space utilization, and reliable movement control. It is suitable for venues requiring flexible equipment arrangements and precise stage operation.

Q4: How does Rentezhihe (Jiangsu) Equipment Technology Co., Ltd. support stage equipment projects?

The company provides integrated services including design, manufacturing, installation, commissioning, and maintenance support. Its engineering capabilities and quality management system help customers achieve safe and stable stage equipment operation.

Q5: Why is guide track maintenance important for intelligent stage machinery?

Guide track maintenance directly affects movement accuracy, equipment lifespan, and operational safety. A well-maintained mechanical foundation allows intelligent control systems to perform more reliably.
