Rigid Lift Chain Stage System

Request a Quote
  • Rigid Lift Chain Stage System
  • Rigid Lift Chain Stage System
  • Rigid Lift Chain Stage System
  • Rigid Lift Chain Stage System
  • Rigid Lift Chain Stage System
  • Rigid Lift Chain Stage System

Description

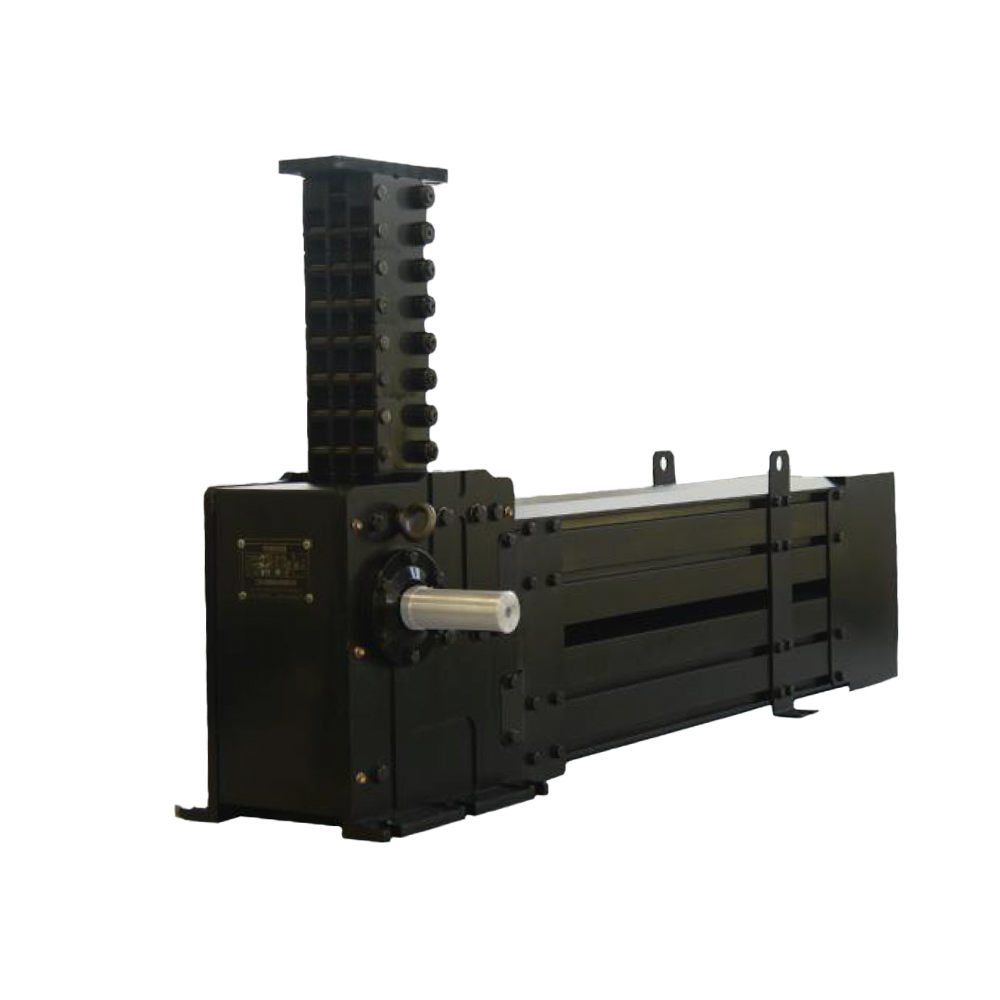

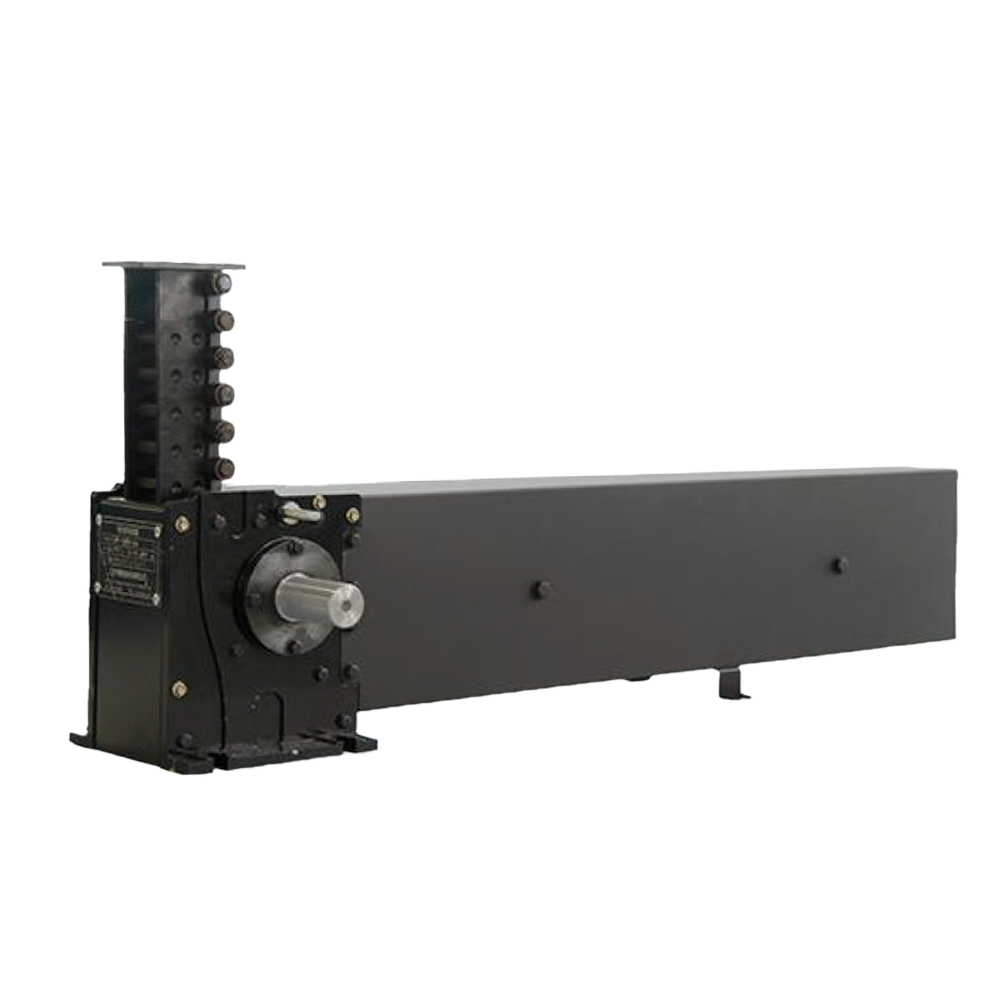

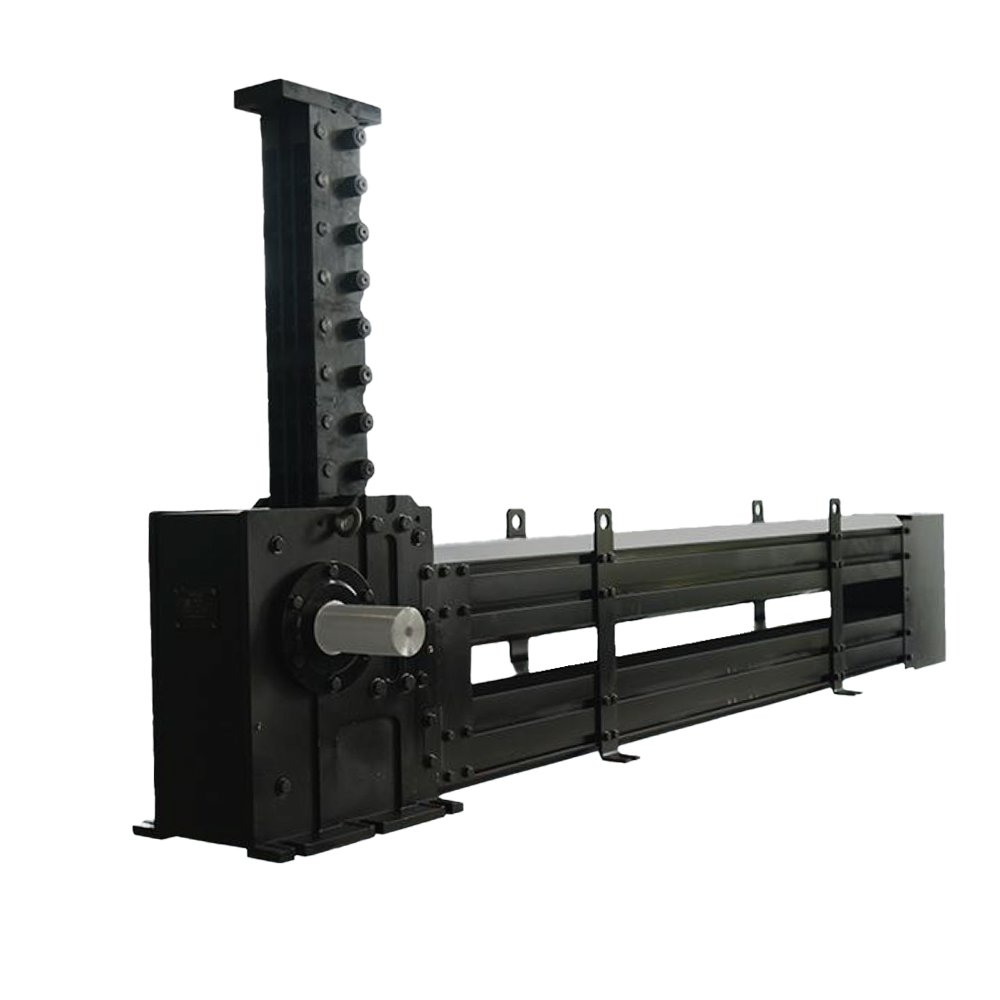

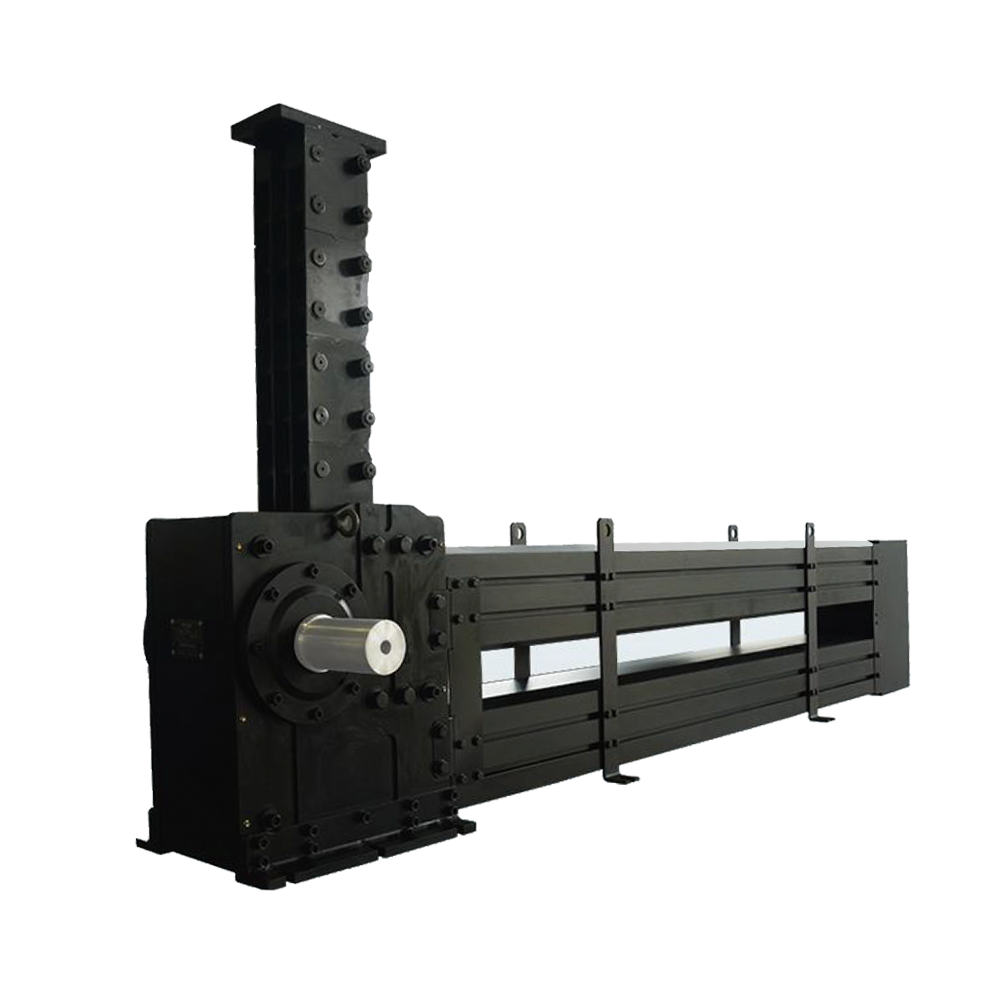

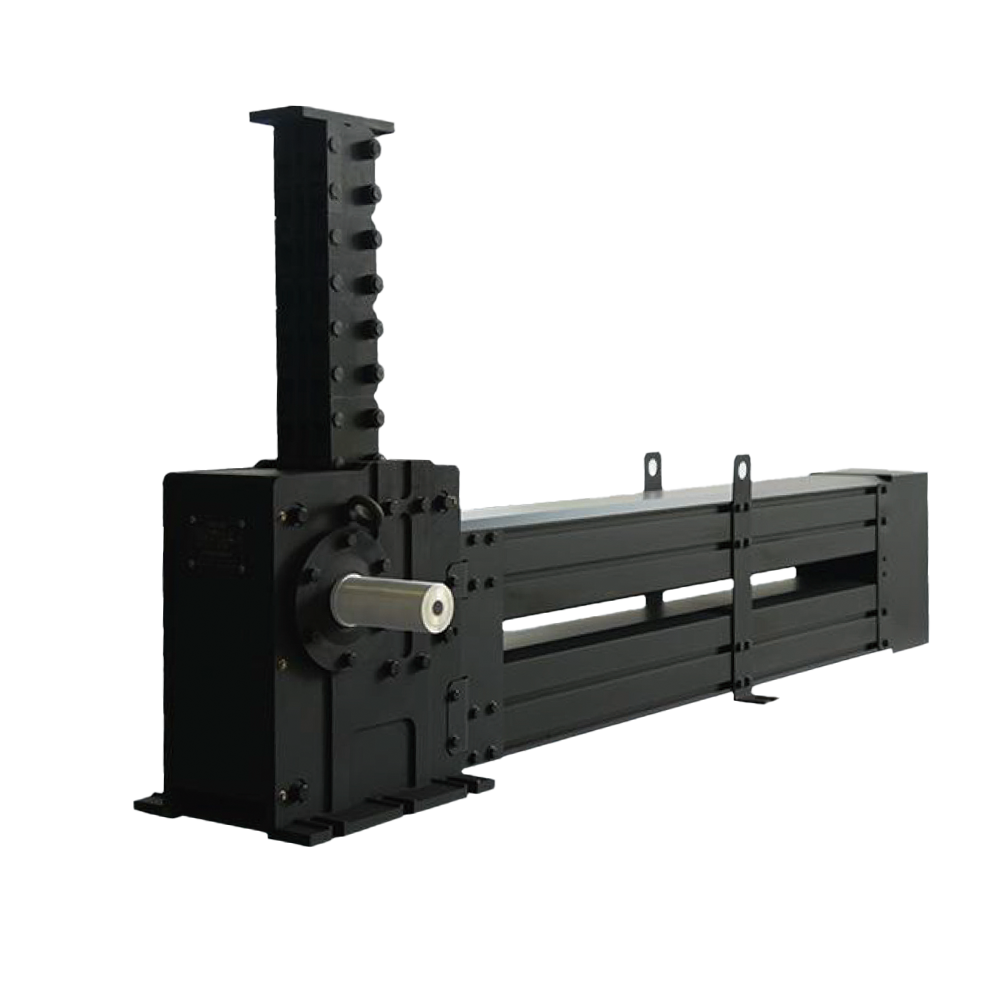

Rigid Lift Chain System is a high-precision mechanical lifting solution designed to convert rotational power into powerful linear thrust. This system utilizes a specialized thrust chain driven by a sprocket mechanism to deliver stable, vertical movement for heavy loads, making it an essential component for modern theater and performance stage automation.

Product
Advantages

We can design and develop according to the needs of our customers to meet the requirements of different clients.

Key Features
Unparalleled Stability & Precision: Engineered for high-frequency use, the system offers exceptional positioning accuracy and smooth operation, ensuring synchronized movement even under varying loads.
High-Speed Performance: Designed to meet the dynamic needs of live performances, the series supports rated speeds of up to 300mm/s (for 40A to 100A models).
Modular & Customizable Design: The series encompasses a wide range of specifications (from 30A to 100A), supporting travel distances from 1.2m to 10m and load capacities from 10kg to over 200kg, allowing for versatile configurations tailored to specific site requirements.
Durability & Low Maintenance: Built with wear-resistant materials and a robust gear-chain mechanism, the system is designed for a long service life with minimal maintenance.


Technical Components

Thrust Chain: The core mechanism that provides a rigid vertical lifting force.
Sprocket & Gearbox: High-efficiency driving units that ensure precise power transmission.
Chain Storage Box: A compact housing solution for the retracted chain, optimizing installation space.
Silent Guide Rails: Integrated tracks that ensure quiet operation, meeting the strict acoustic requirements of theater environments.


Typical Applications

This system is the ideal choice for various stage lift configurations, including:
Professional Theaters: Orchestra pits, main stage lift platforms, and choral risers.
Touring & Temporary Stages: Scissor lifting platforms and modular matrix lifts.
Multi-purpose Venues: Adjustable floors for banquet halls and convention centers.
